Specifications:

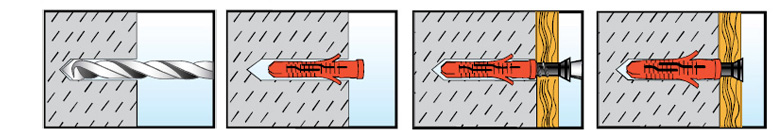

1. Features: The rim prevents the plug from slipping into the drill hole, but also allows push-through installation. The anti-rotation wings prevent the plug rotating in the drill hole. The plug geometry provides offers high load-bearing capacities in solid and semi-solid building materials. When turning in the screw, the plug expands, providing a secure anchoring in solid and soft building materials.
2. Applications: For use with chipboard screws, wood screws and spacer screws. The required screw length = plug length + board material thickness + fixture thickness + 1x screw diameter.
3. Size:
|
d(mm) |
l(mm) |
d0(mm) |
h1(mm) |
ds(mm) |
hef(mm) |
|
5 |
25 |
5 |
35 |
3.0-4.0 |
25 |
|
6 |
30 |
6 |
40 |
4.0-5.0 |
30 |
|
8 |
40 |
8 |
55 |
4.5-6.0 |
40 |
|
10 |
50 |
10 |
65 |
6.0-8.0 |
50 |
|
12 |
60 |
12 |
75 |
8.0-10 |
60 |
|
14 |
70 |
14 |
85 |
10-12 |
70 |
