1. Product code: GBA535
2. Description: It is made by carbon steel and pin.
Specifications:
1. Application: Ceiling suspension light duty application.
2. Features: Easy and quick installation; reduced drilling depth combined with hammer-in installation; two hit zones for easy and secure installation: first the nail head and then the expansion pin.
3. Material: Carbon steel.
4. Surface: Yellow zinc plated, white blue zinc plated.
5. Size:
d(mm)
l(mm)
d0(mm)
h1(mm)
hef(mm)
tfix(mm)
6
35
6
45
32
45
6
65
6
75
32
35

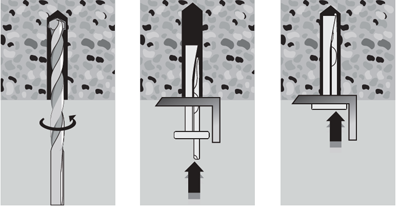

Drill a hole; hammer driving the pin; it creates expansion of the anchor into concrete.
