Specifications:
1. Applications: Designed to be inserted into a pre-drilled hole and set by means of a setting tool to provide attachment point for bolts or hanger rods, specify bolt or rod size and figure number.
2. Material: Carbon steel, Stainless steel 304,316,Alloy steel.
3. Surface: Yellow zinc plated, white zinc plated.
4. Size:
|
d(mm) |
I(mm) |
d0(mm) |
h1(mm) |
Is(mm) |
hef(mm) |
|
M 6 |
25 |
8 |
30 |
11 |
25 |
|
M 8 |
30 |
10 |
35 |
13 |
30 |
|
M 10 |
40 |
12 |
45 |
15 |
40 |
|
M 12 |
50 |
15 |
55 |
19 |
50 |
|
M 16 |
65 |
20 |
70 |
25 |
65 |
|
M 20 |
80 |
25 |
85 |
33 |
80 |

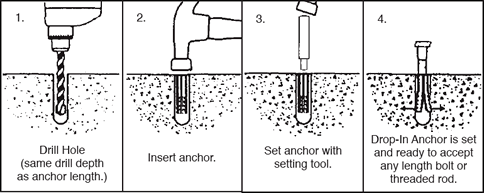

5.Product Installation:
