Specifications:
1. Application: Suitable for suspended ceiling & light weight suspension, ie hanging overhead things.
2. Features: Tie wire head; whole contact provides max holding power; dog point is easy insertion and installation. Tie wire anchor is quick to install & easily set by pulling back with claw hammer. Strong holding power specifically designed to protect anchorage point in concrete ceiling. Its unique design allows the nail to expand the anchor uniformly in the hole.
3. Material: Carbon steel or stainless steel.
4. Surface: Zinc plated.
5. Size:
Anchor Size
Drill Dia. (mm)
Eye
Size Dia. (mm)
Min Embedment (mm)
M6X50
6.0
6.3
35
M6x60
6.0
6.3
35
M6x67
6.0
6.3
42
M6X120
6.0
6.3
42
1/4x2 1/4
6.2
7.2
35
1/4x2-1/32
6.5
7.5
35
1/4x2-1/8
6.5
7.4
35

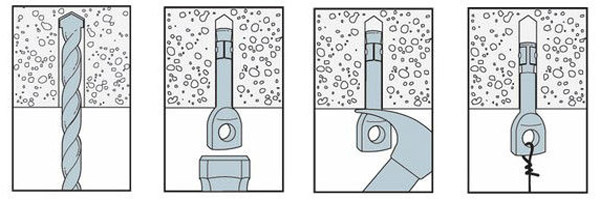

6. Installation:
