1. Product Code: GBA543
2. Descripition: Spring toggle anchor consists of spring-loaded metal wings and machine bolt.
Specifications：
1. Applications: The spring toggle is a cavity fixing for different board thicknesses and large usage lengths. The fixing is especially made for plasterboard, fiberboard, hardboards and other board materials.

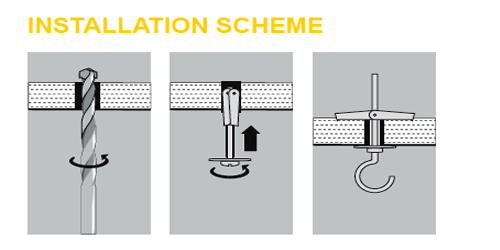

2. Features: The long shaft offers high flexibility in use. Simple and secure installation thanks to the integrated tension spring. Steel springs expand the two legs automatically inside the cavity. When placed in the drill hole, the spring toggle will swing open behind the board.
3. Material: Carbon steel
4. Surface: Zinc plated
5. Size:
|
Size |
Drill-Ø(mm) |
Max. panel thickness(mm) |
Min. cavity depth(mm) |
Length(mm) |
|
M 3 x 90 |
12 |
65 |
27 |
95 |
|
M 3 x 80 |
12 |
51 |
27 |
105 |
|
M 3 x 90 |
12 |
65 |
27 |
95 |
|
M 4 x 100 |
14 |
69 |
34 |
105 |
|
M 4 x 70 |
14 |
35 |
34 |
95 |
|
M 4 x 100 |
14 |
69 |
34 |
105 |
