1. Product code: GBA544
2. Description: Through stud with nut, washer and drive-in pin.
NOTE: The wedge anchor with turned stud or cold forded stud are avaliable.

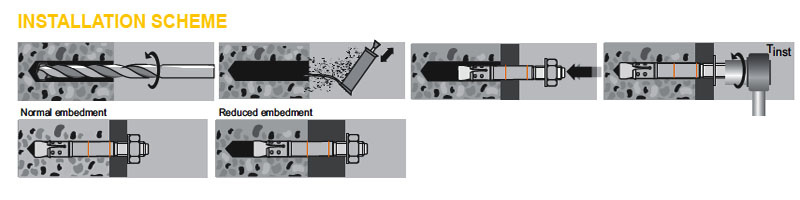

Specification:
1. Features: Vast range for flexible use for medium and heavy load applications. The drive-in pin protects the thread from damage.
2. Material: Carbon steel or stainless steel.
3. Application: Concrete and stone.
4. Coating: Yellow zinc, blue white zinc, hot galvanized zinc.
5. Size
|
d(mm) |
l(mm) |
d0(mm) |
h1(mm) |
Tinst(mm) |
df(mm) |
hef(mm) |
tfix(mm) |
SW(mm) |
|
M 6 |
80 |
6 |
55 |
7 |
7 |
40 |
22 |
10 |
|
M 6 |
100 |
6 |
55 |
7 |
7 |
40 |
42 |
10 |
|
M 6 |
120 |
6 |
55 |
7 |
7 |
40 |
62 |
10 |
|
M 8 |
60 |
8 |
65 |
20 |
9 |
48 |
5 |
13 |
|
M 8 |
90 |
8 |
65 |
20 |
9 |
48 |
20 |
13 |
|
M 8 |
130 |
8 |
65 |
20 |
9 |
48 |
60 |
13 |
|
M 10 |
70 |
10 |
70 |
35 |
12 |
55 |
5 |
17 |
|
M 10 |
120 |
10 |
70 |
35 |
12 |
55 |
40 |
17 |
|
M 10 |
210 |
10 |
70 |
35 |
12 |
55 |
130 |
17 |
|
M 12 |
90 |
12 |
85 |
60 |
14 |
65 |
5 |
19 |
|
M 12 |
110 |
12 |
85 |
60 |
14 |
65 |
18 |
19 |
|
M 12 |
180 |
12 |
85 |
60 |
14 |
65 |
88 |
19 |
|
M 12 |
250 |
12 |
85 |
60 |
14 |
65 |
158 |
19 |
|
M 14 |
120 |
14 |
100 |
90 |
16 |
75 |
12 |
22 |
|
M 14 |
220 |
14 |
100 |
90 |
16 |
75 |
112 |
22 |
|
M 14 |
250 |
14 |
100 |
90 |
16 |
75 |
142 |
22 |
|
M 16 |
125 |
16 |
110 |
120 |
18 |
84 |
5 |
24 |
|
M 16 |
170 |
16 |
110 |
120 |
18 |
84 |
48 |
24 |
|
M 16 |
250 |
16 |
110 |
120 |
18 |
84 |
128 |
24 |
|
M 20 |
170 |
20 |
135 |
240 |
22 |
103 |
23 |
30 |
|
M 20 |
220 |
20 |
135 |
240 |
22 |
103 |
73 |
30 |
