1. Product code: GBA548

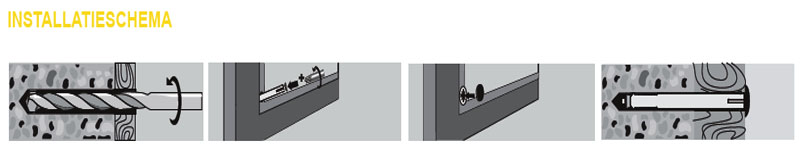

2. Description: Metal frame anchor with cylindrical head (diam 8) or countersunk head (diam 10) for installation of window and door frames.
Specifications:
1. Application: For fixing of plastic, wood, aluminum window and color frames to concrete, brick, and hollow blocks.
2. Material: Carbon steel.
3. Size:
|
d（mm） |
l（mm） |
d0（mm） |
h1（mm） |
hef（mm） |
tfix（mm） |
S（mm） |
|
8 |
72 |
8 |
90 |
30 |
42 |
2 |
|
8 |
92 |
8 |
110 |
30 |
62 |
2 |
|
8 |
112 |
8 |
130 |
30 |
82 |
2 |
|
8 |
132 |
8 |
150 |
30 |
102 |
2 |
|
8 |
172 |
8 |
190 |
30 |
142 |
2 |
|
10 |
72 |
10 |
90 |
30 |
42 |
3 |
|
10 |
92 |
10 |
110 |
30 |
62 |
3 |
|
10 |
112 |
10 |
130 |
30 |
82 |
3 |
|
10 |
132 |
10 |
150 |
30 |
102 |
3 |
|
10 |
152 |
10 |
170 |
30 |
122 |
3 |
|
10 |
182 |
10 |
200 |
30 |
152 |
3 |
|
10 |
202 |
10 |
220 |
30 |
172 |
3 |
