Specifications:
1. Application: The gravity is
a cavity fixing for different board thicknesses and large usage lengths. The fixing is especially made for plasterboard, fibreboard,
hardboards and other board
materials.

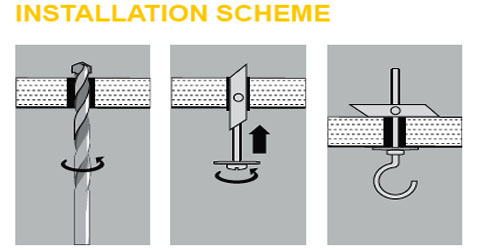

2. Features: Its unique design allows the nail to expand the
anchor uniformly in the hole. The long shaft offers high flexibility in use. Simple and secure installation thanks to the gravity toggle. The bearing element will
swing open inside the cavity. When
placed in the drill hole, the gravity toggle will swing open behind the board.
3. Size:
d(mm)
l(mm)
d0(mm)
ds(mm)
ls(mm)
M 6
75
18
M 6
75
M 6
95
18
M 6
95
M 8
100
20
M 8
100
