1. Product code: GBA591
2. Description: Aerated concrete plug.
Specifications:
1. Application: Special plug for cellular concrete, for use with both metric thread screws and wood thread screws.

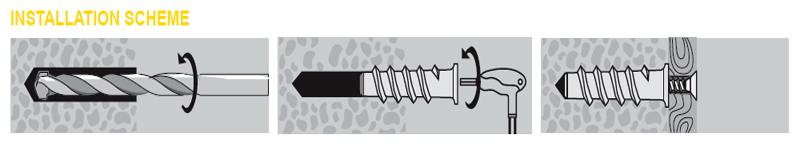

2. Features: The coarse thread taps itself into the aerated concrete. Expansion free anchoring allowing small edge and spacing distances and avoids surface splitting. Convenient installation with setting tool. Pre-positioned installation. Use low torque when installing the anchor. The required screw length = plug length + fixture thickness.
3.Size:
d(mm)
l(mm)
d0(mm)
h1(mm)
ds(mm)
hef(mm)
M 6
50
10
60
5-6 / M 6
50
M 8
60
12
70
7-8 / M 8
60
M10
70
14
80
9-10/M10
70
