1. Product code: GBA602
2. Description: Insulation fixing with synthetic nail.
Specifications:
1. Application: Insulation plug with 90mm disc suitable for all conventional insulation boards.

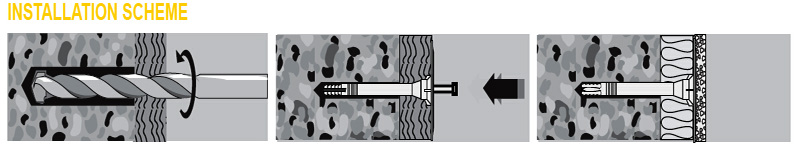

2. Features: The glass-fiber-reinforced plastic nail reduces the heat transmission. Simple hammer-in for quick installation. Low anchorage depth reduces the drilling depth. Push-through installation. The plug will expand in when the nail is hammered-in. Non-bearing layers, such as adhesive and/or old render and plaster, must be included in the anchor’s useful length.
3. Material: PA66
4. Size:
|
d(mm) |
l(mm) |
d0(mm) |
h1(mm) |
hef(mm) |
tfix(mm) |
|
10 |
70 |
10 |
40 |
30 |
40 |
|
10 |
90 |
10 |
40 |
30 |
60 |
|
10 |
110 |
10 |
40 |
30 |
80 |
|
10 |
130 |
10 |
40 |
30 |
100 |
|
10 |
150 |
10 |
40 |
30 |
120 |
|
10 |
180 |
10 |
40 |
30 |
150 |
|
10 |
210 |
10 |
40 |
30 |
180 |
