1. Product code: GBA607
2. Description: A universal nylon plug with excellent results in all construction materials.
Specifications:
1. Application: It is ideal for fixings in hollow and perforated base materials. For use with chipboard screws and other wood screws.

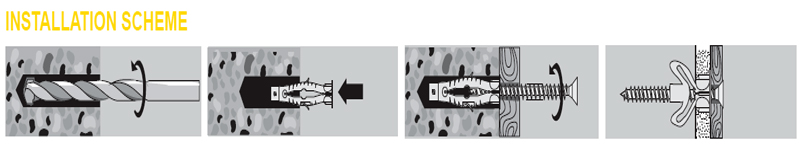

2. Features: The anti-rotation wings prevent the plug rotating in the drill hole. Sturdy expansion zones, assuring an optimum behavior in all building materials. Strong knot expansion in hollow materials. Pre-positioned installation. Thanks to its versatility it is very much liked by professional craftsmen such as electricians and installers. When turning in the screw, the plug expands in 2 directions, providing a secure anchoring in solid and soft building materials. The required screw length = plug length + board material thickness + fixture thickness + 1x screw diameter
3. Material: PE or PA66.
4. Size:
d[mm]
l[mm]
d0[mm]
h1[mm]
ds[mm]
hef[mm]
6
40
6
45
4
40
8
50
8
65
4.5
50
10
60
10
75
5
60
